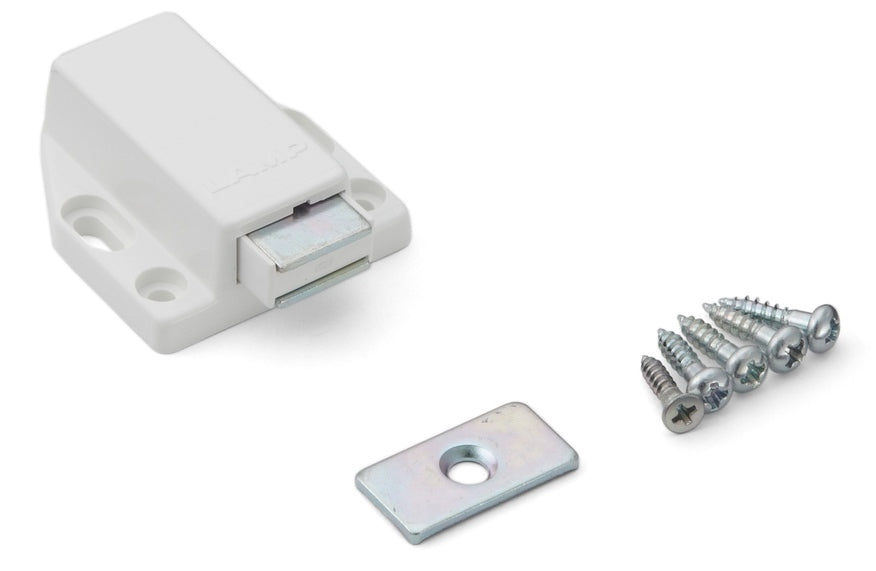

2 high-quality magnetic push-button catches, including counterplate, surface: white, 38 mm (1-1/2″), ML-80W for furniture doors, cabinet doors

2 high-quality magnetic push-button catches, made of metal and robust plastic (metal and plastic), surface: white, ML-80W, size: 38 mm (1-1/2″)

Application:

Push-to-open door opener for furniture doors, cupboard doors and much more.

The ML-80W magnetic push-button catch enables convenient opening and closing of handleless furniture doors by pressing.

The Push-To-Open door opener ML-80W has a plunger extension travel of 15 mm (19/32″).

Thanks to its compact plastic housing, the ML-80W magnetic pressure catch can be discreetly screwed onto the body side.

The counterplate of the ML-80W magnetic push-to-close latch has four pointed pins at the corners that engage the wood surface. This allows the counterplate to be securely attached with just one screw.

The high-quality magnetic push-button catches 140-050-271 are ideal for, among others:

• Cabinet flaps
• Kitchen cabinet doors
• Bathroom furniture doors
• Furniture doors
• Cabinet doors

Material:

• The magnetic pressure catches 140-050-271 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust yet adaptable
• In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• White
• White surfaces convey a clean and modern aesthetic
• The color white reflects light effectively, making rooms appear brighter and visually larger
• In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use

Assembly:

• The fastening is carried out using the five screws included in the delivery (wood screws (4 round-head wood screws 3.1 x 13 mm and 1 countersunk-head wood screw 2.7 x 13 mm))
• The magnetic pressure catch ML-80W has 2 mounting holes
• The distance between the mounting holes is 28 mm (1-7/64″)
• The catch is screwed onto the side of the body

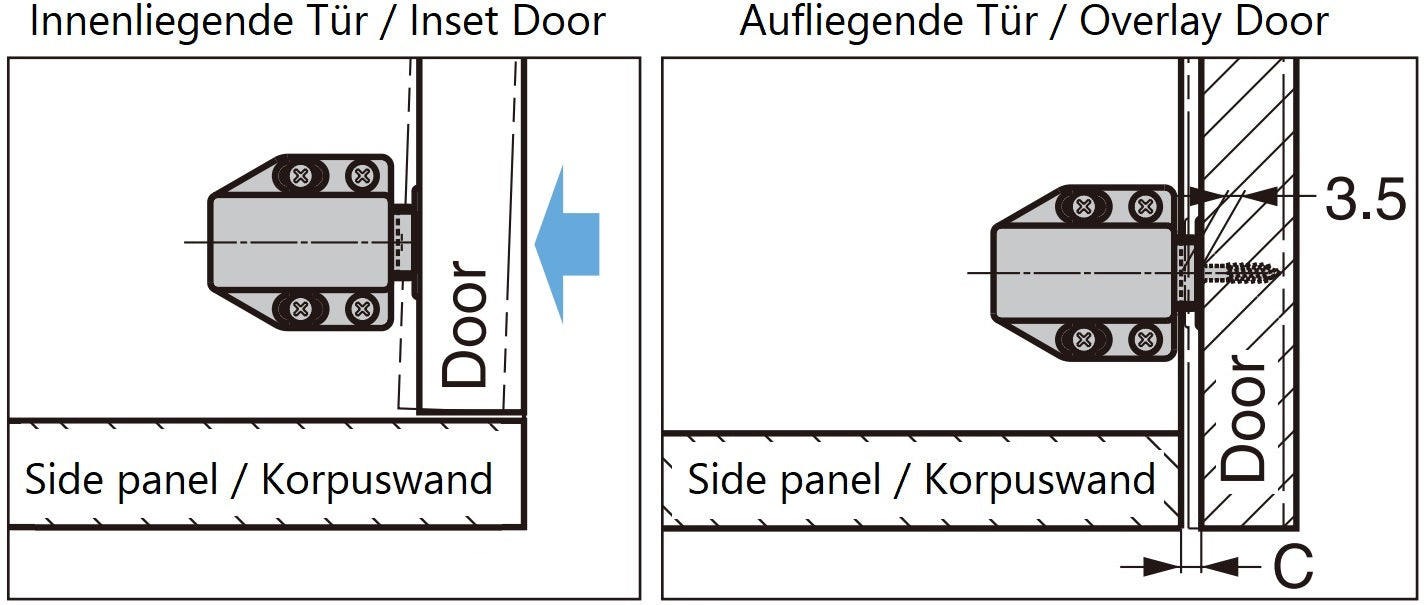

• The minimum distance between the door and the furniture body is 3.5 mm (for further details see assembly drawing )

Characteristics:

• Weight: 53 g
• Load capacity: 15.7 N (1.7 kp)
• Size: 38 mm (1-1/2″)

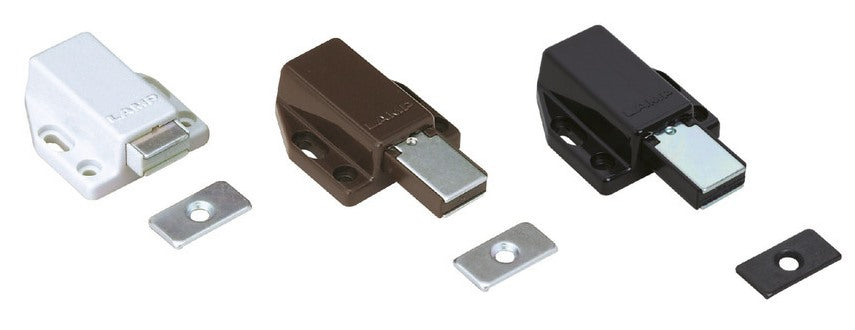

• Available in 3 colors: black, white and brown
• easy to assemble
• practical
• stable
• Ram travel: 15 mm (19/32″)
• Minimum door gap: 3.5 mm
• white
• robust
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Magnetic snap width: 36 mm (1-27/64″)
• Depth of the magnetic snap fastener: 38 mm (1-1/2″)
• Height: 15 mm (19/32″)
• Mounting plate width: 23 mm (29/32″)
• Mounting plate depth: 12 mm (15/32″)

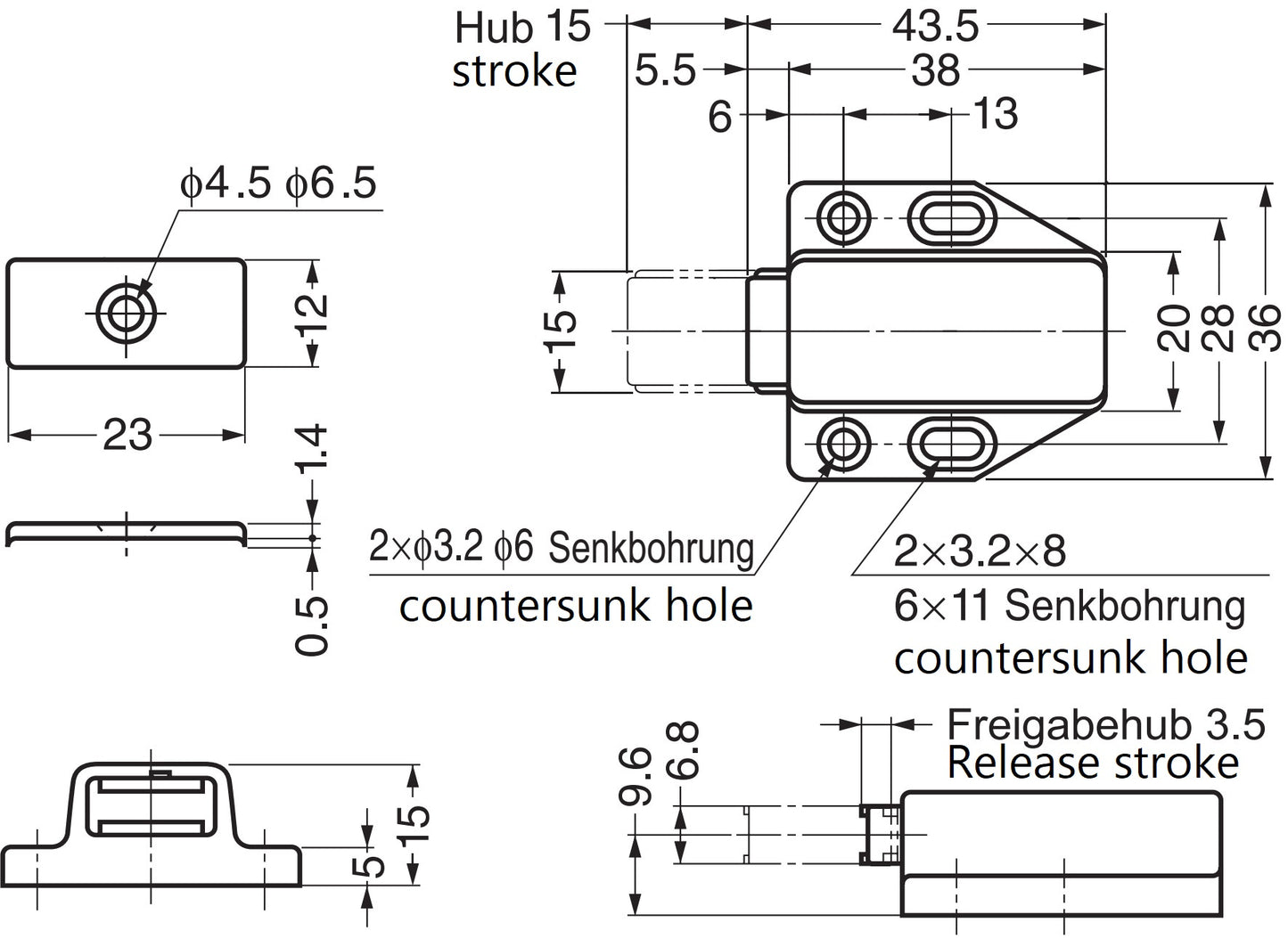

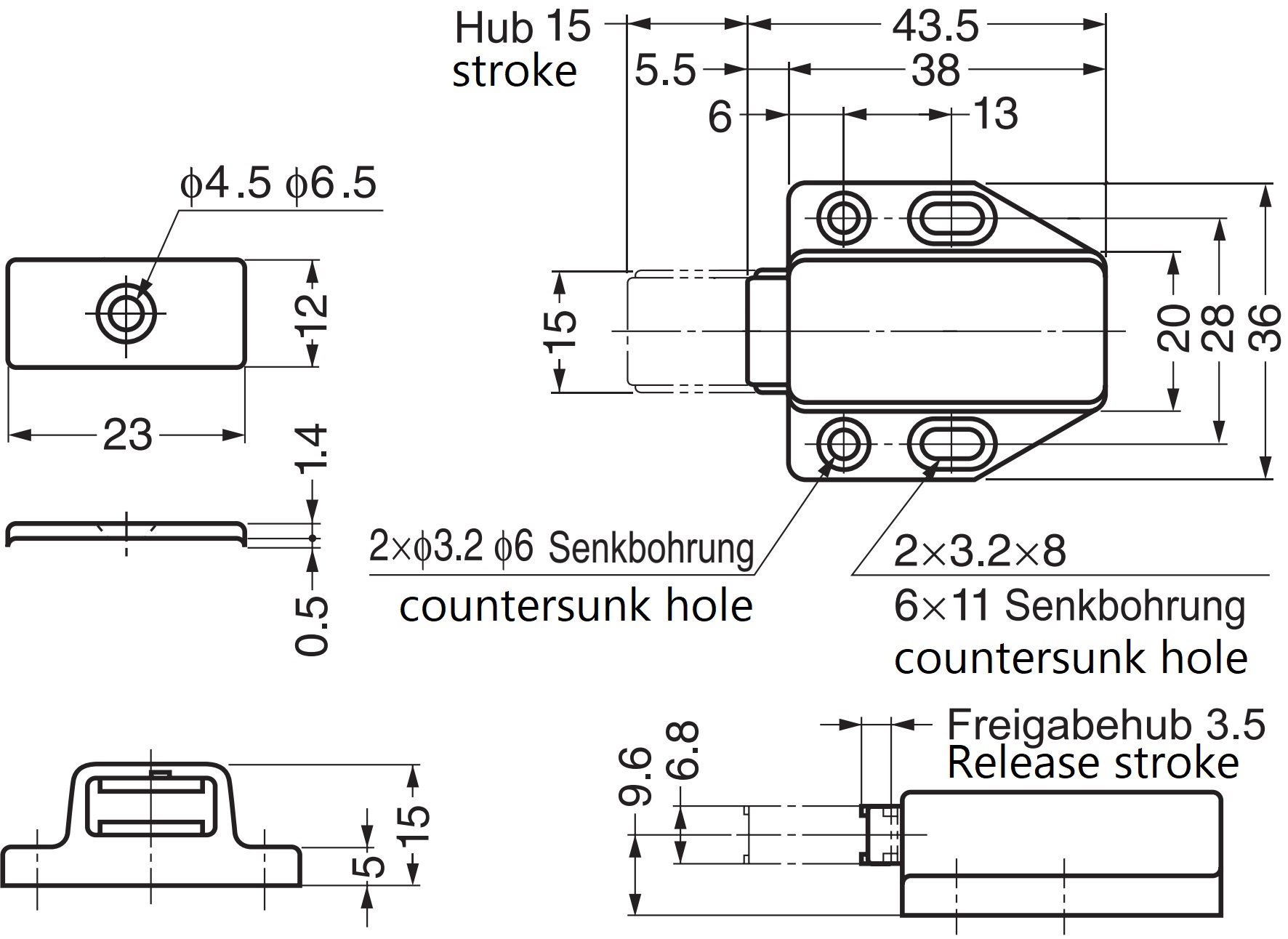

For further dimensions and details see technical drawing .

Included in delivery:

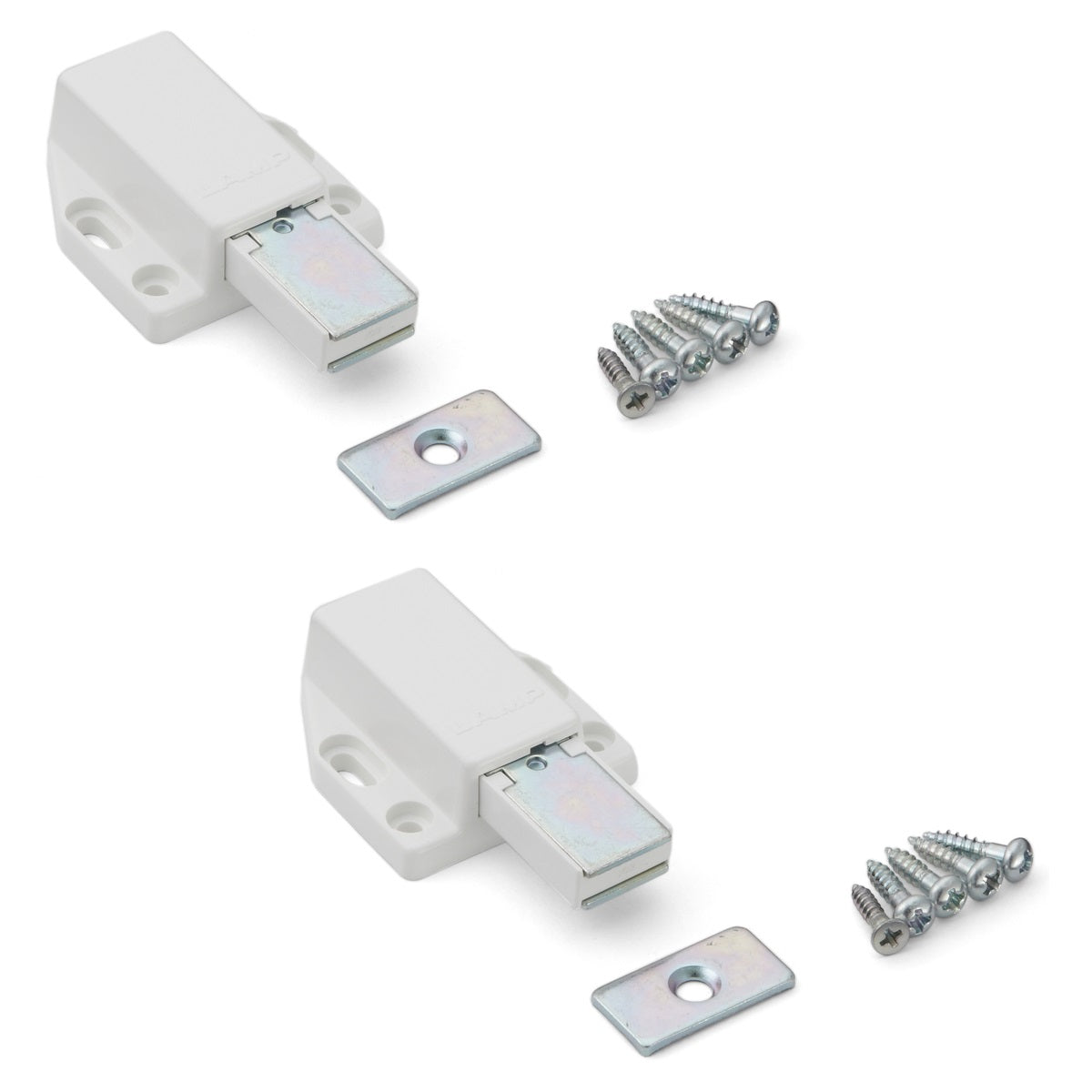

• 2 pieces magnetic push-button catches 140-050-271 made of metal and robust plastic, white
• 2 pieces counter plate made of steel, nickel-plated
• Two times: 5 wood screws (4 round-head wood screws 3.1 x 13 mm and 1 countersunk-head wood screw 2.7 x 13 mm)

Manufacturer reference number:

• Article number: 140-050-271
• Item number: ML-80W
• EAN number: 4510932004596

Manufacturer:Sugatsune / LAMP® (Japan)
