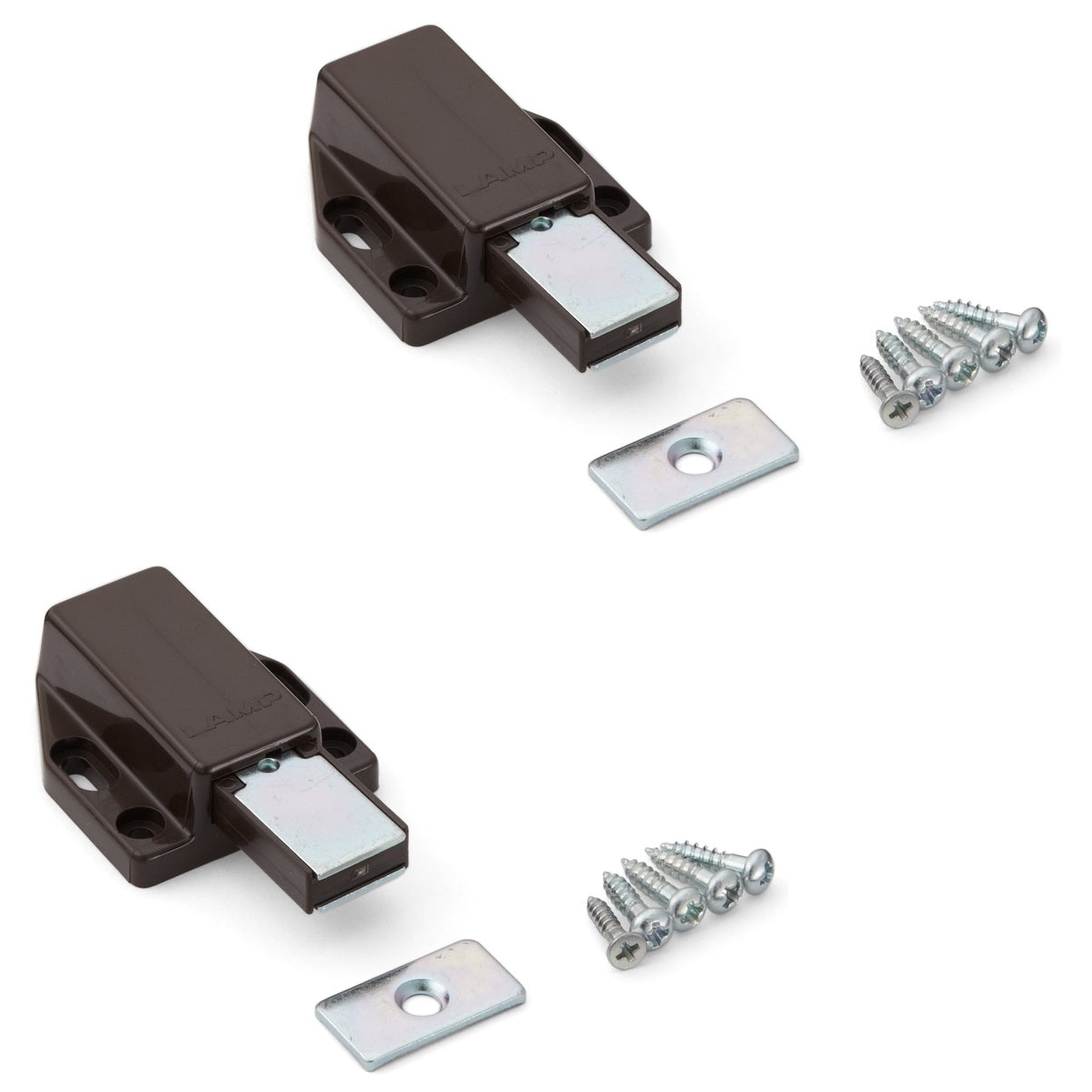

2 high-quality magnetic push-button catches, including counterplate, surface: brown, 38 mm (1-1/2″), ML-80BR for furniture doors, cabinet doors

2 high-quality magnetic snap fasteners, made of metal and robust plastic (metal and plastic), surface: brown, ML-80BR, size: 38 mm (1-1/2″)

Application:

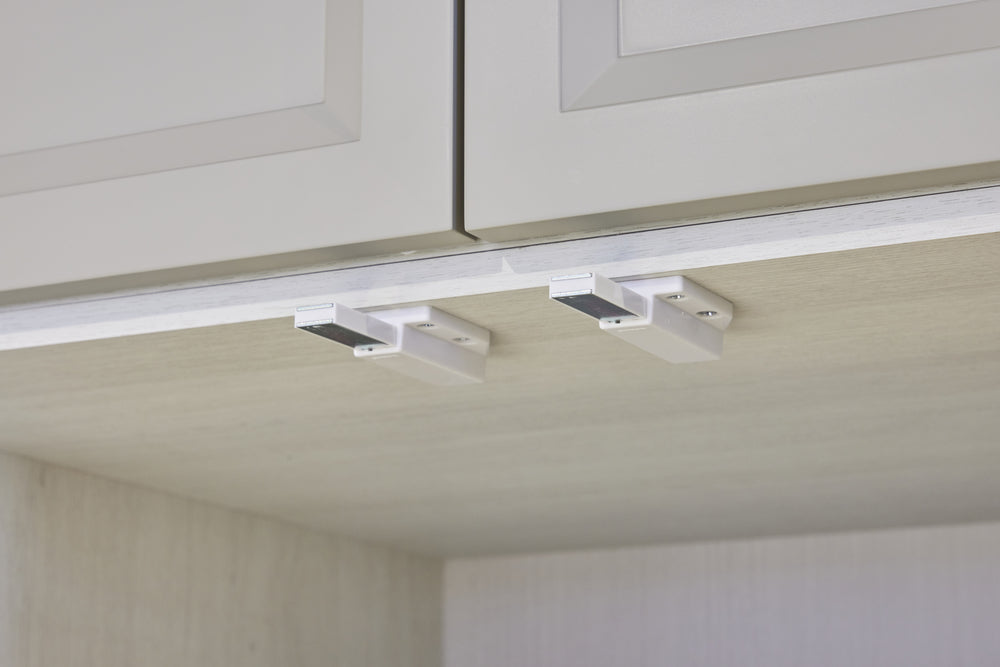

Push-to-open door opener for furniture doors, cupboard doors and much more.

The ML-80BR magnetic push-button catch allows for convenient opening and closing of handleless furniture doors by pressing.

The Push-To-Open door opener ML-80BR has a plunger extension travel of 15 mm (19/32″).

Thanks to its compact plastic housing, the ML-80BR magnetic push-button latch can be discreetly screwed onto the body side.

The counterplate of the ML-80BR magnetic push-to-close latch has four pointed tenons at the corners that engage the wood surface. This allows the counterplate to be securely attached with just one screw.

The high-quality magnetic pressure catches 140-050-270 are ideal for, among others:

• Cabinet flaps
• Kitchen cabinet doors
• Bathroom furniture doors
• Furniture doors
• Cabinet doors

Material:

• The magnetic snap fasteners 140-050-270 are made of metal and robust plastic (metal and plastic)
• The combination of metal and plastic offers an optimal balance of strength and flexibility, making the fittings robust yet adaptable
• In addition, this material combination enables improved aesthetics and functionality, as it offers both stability and a variety of design options

Surface:

• Brown
• Brown conveys a feeling of warmth and comfort, creating a cozy and inviting atmosphere, ideal for living and dining areas
• Brown goes well with wood and is a versatile, neutral color that combines well with other colors and materials and exudes timeless elegance

Assembly:

• The fastening is carried out using the five screws included in the delivery (wood screws (4 round-head wood screws 3.1 x 13 mm and 1 countersunk-head wood screw 2.7 x 13 mm))
• The magnetic pressure catch ML-80BR has 2 mounting holes
• The distance between the mounting holes is 28 mm (1-7/64″)
• The catch is screwed onto the side of the body

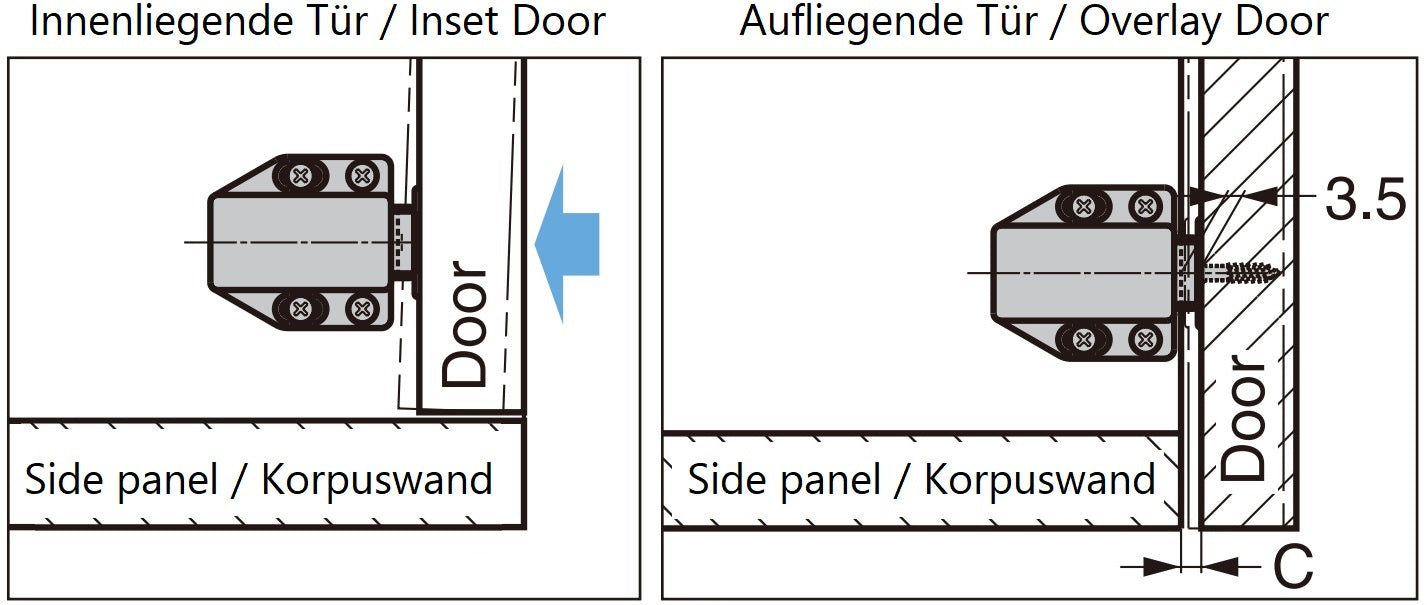

• The minimum distance between the door and the furniture body is 4 mm (for further details see assembly drawing )

Characteristics:

• Weight: 53 g
• Load capacity: 15.7 N (1.7 kp)
• Size: 38 mm (1-1/2″)

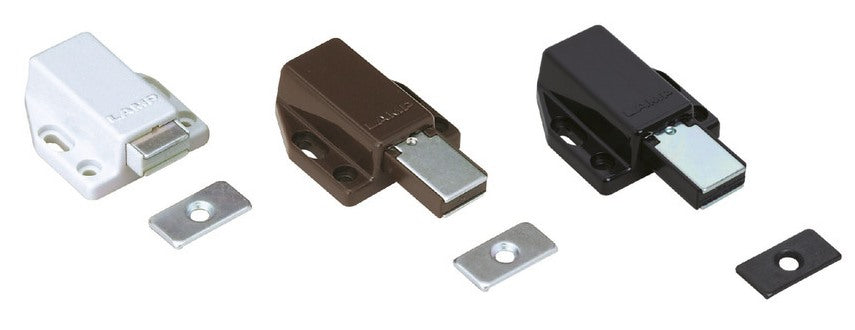

• Available in 3 colors: black, white and brown
• easy to assemble
• practical
• stable
• Ram travel: 15 mm (19/32″)
• Minimum door gap: 3.5 mm
• brown
• robust
• high brand quality from Sugatsune / LAMP®

The dimensions:

• Magnetic snap width: 36 mm (1-27/64″)
• Depth of the magnetic snap fastener: 38 mm (1-1/2″)
• Height: 15 mm (19/32″)
• Mounting plate width: 23 mm (29/32″)
• Mounting plate depth: 12 mm (15/32″)

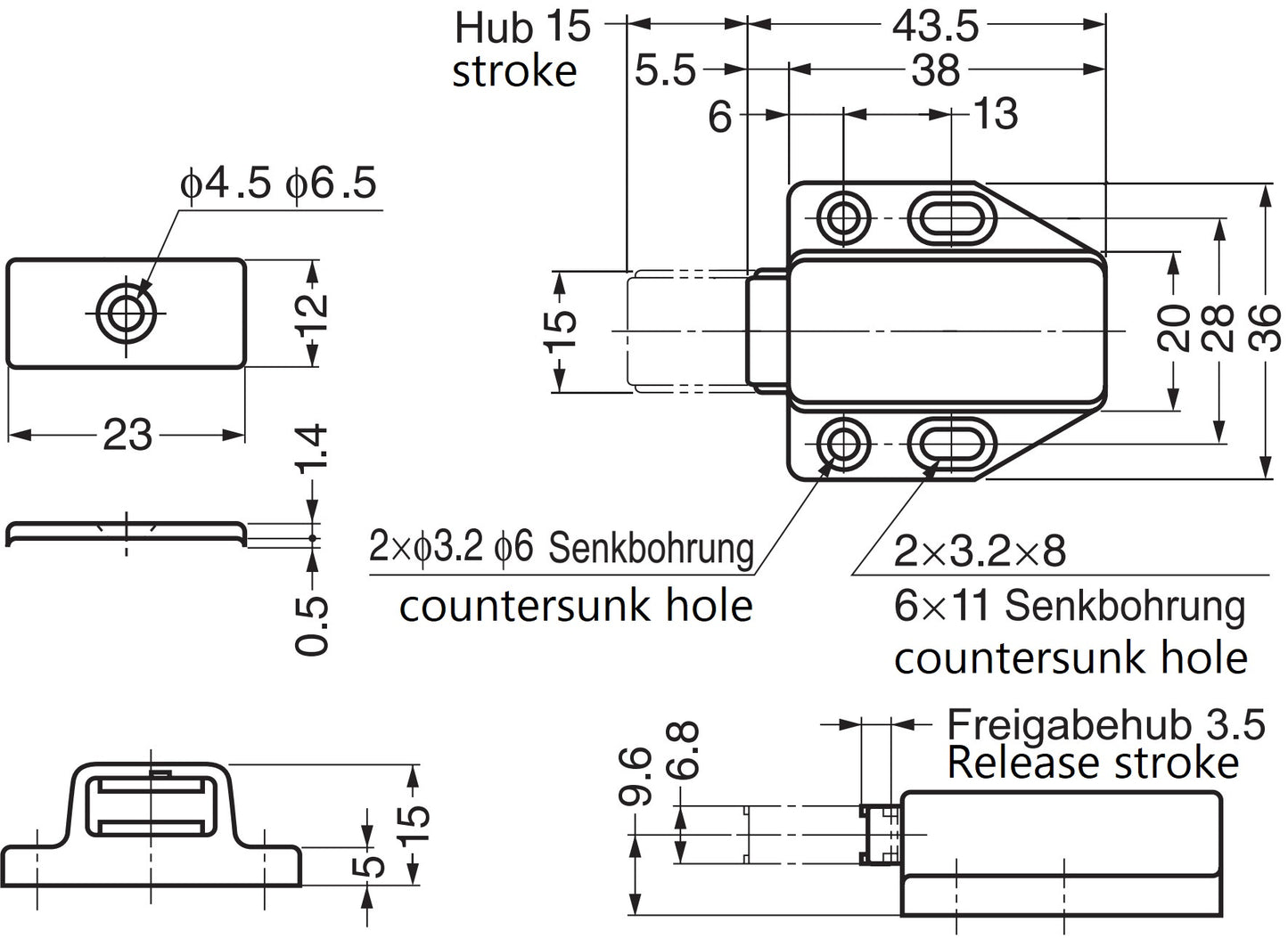

For further dimensions and details see technical drawing .

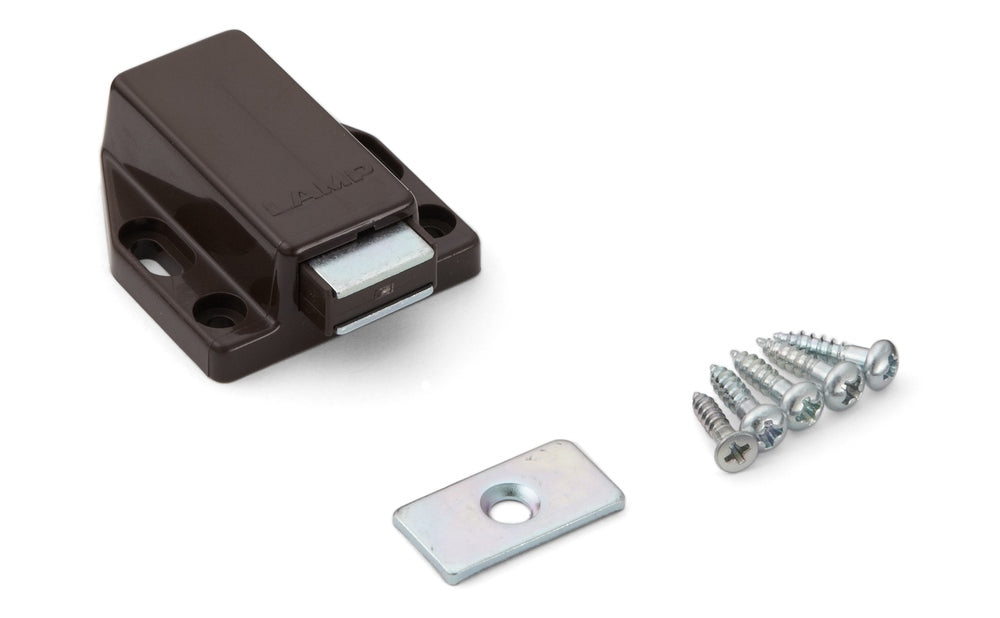

Included in delivery:

• 2 pieces magnetic snap fasteners 140-050-270 made of metal and robust plastic, brown
• 1 piece counter plate made of steel, nickel-plated
• Two times: 5 wood screws (4 round-head wood screws 3.1 x 13 mm and 1 countersunk-head wood screw 2.7 x 13 mm)

Manufacturer reference number:

• Article number: 140-050-270
• Item number: ML-80BR
• EAN number: 4510932004589

Manufacturer:Sugatsune / LAMP® (Japan)
