2 elegant push-button catches with mounting housing, surface: white, design: non-magnetic, 1900215 for furniture doors, cupboard doors, flaps

Two practical push-button catches, made of robust plastic, surface: white, 1900215, design: non-magnetic

Application:

Sturdy push-to-open door opener for furniture doors, cupboard doors, flaps and much more.

For use with hinges with closing spring.

The Push-To-Open door opener 1900215 enables convenient opening and closing of handleless furniture doors by pressing.

The pressure latch 1900215 has a long plunger travel of 37 mm (1-29/64″).

Thanks to its compact plastic housing, the push-button latch 1900215 can be discreetly screwed onto the body side.

The system is low-wear and is particularly suitable for kitchens and bathrooms, where frequent use is common.

The practical mounting housing of the pressure lock 1900215 allows for relaxed installation.

It is also possible to drill the door opener 1900215 directly into the side of the cabinet without having to use the mounting housing.

The high-quality snap fasteners 1900215 are ideal for, among other things:

• Kitchen fronts
• bathroom furniture
• Furniture doors
• Cabinet doors
• Succeed

Material:

• The snap fasteners 1900215 are made of robust plastic (plastic)
• Plastic is lightweight and allows easy assembly of components and furniture fittings without compromising stability
• It is corrosion-resistant and is therefore particularly suitable for humid environments such as swimming pools, bathrooms or kitchens
• In addition, the flexible formability of plastic allows for a wide variety of designs and unobtrusive integration into different furniture styles or devices and machines

Surface:

• White
• White surfaces convey a clean and modern aesthetic
• The color white reflects light effectively, making rooms appear brighter and visually larger
• In addition, white objects are inconspicuous and easy to clean, which makes them particularly practical for everyday use

Assembly:

• The fastening is done with Pozidriv countersunk chipboard screws 3 x 16 mm, self-tapping (not included)
• The pressure snap 1900215 has four mounting holes
• The distance between the first and last mounting hole is 52 mm (2-3/64″)

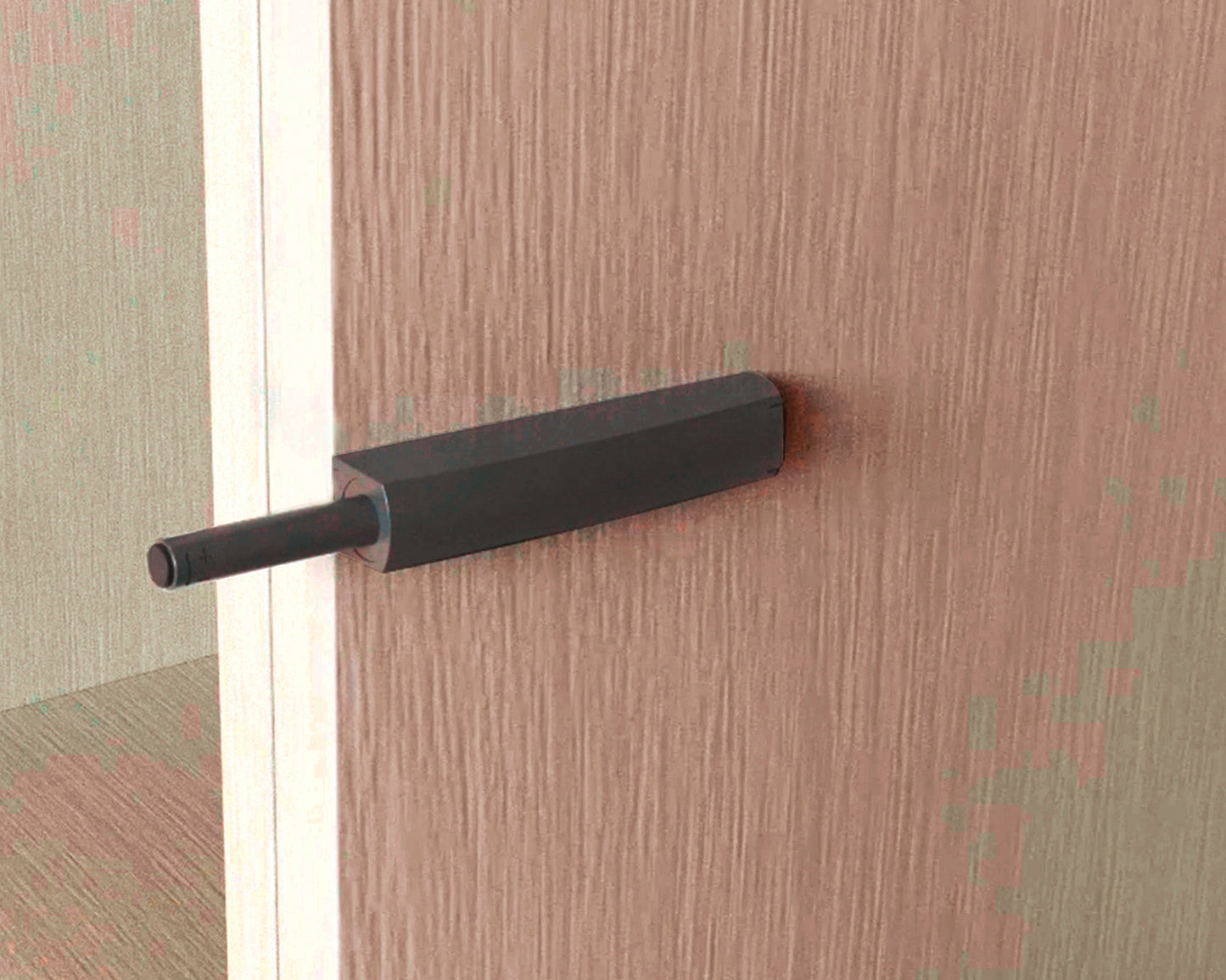

• The catch is screwed onto the side of the body

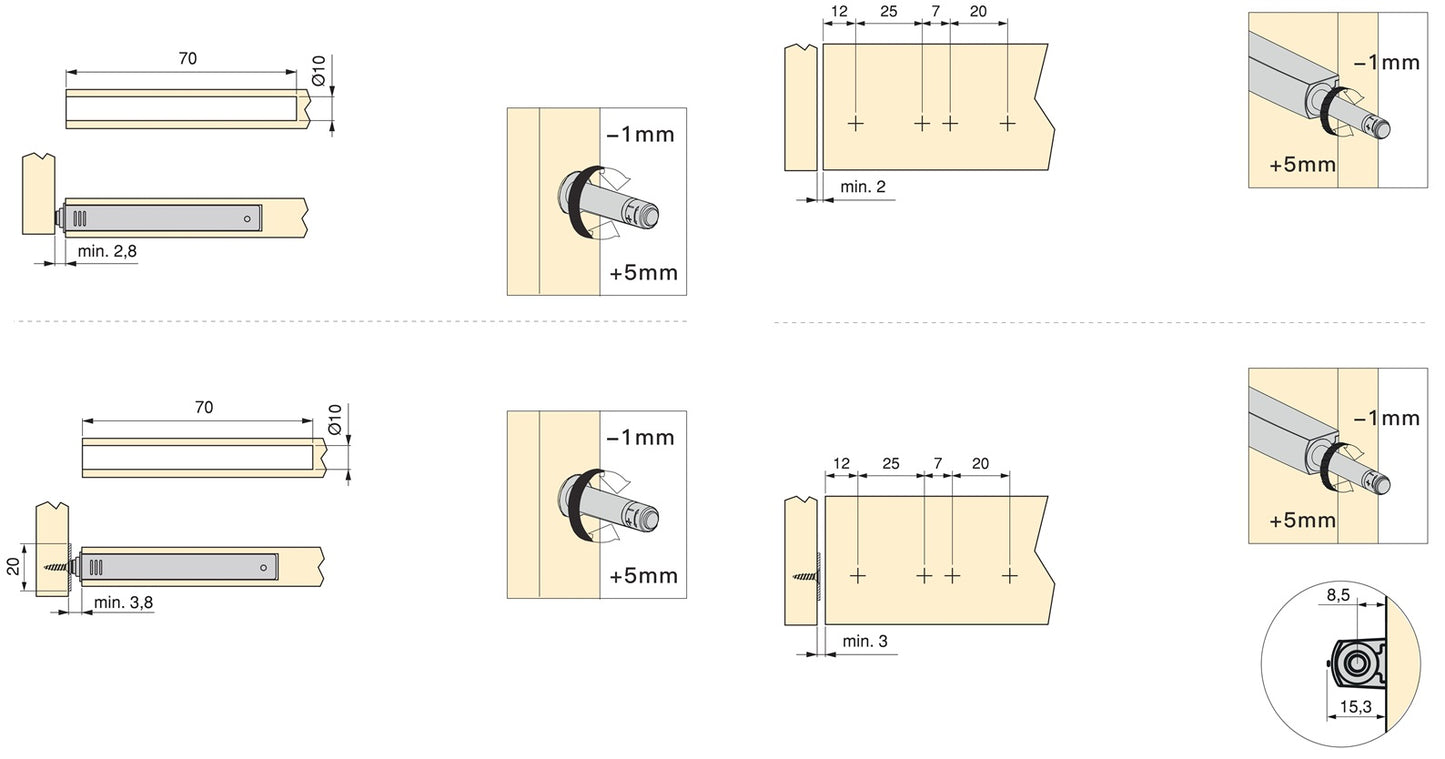

• The distance between the push-to-open door opener 1900215 and the door edge is 12 mm (15/32″) (for further details see assembly drawing )

Characteristics:

• Design: non-magnetic
• Weight: 26 g
• Load capacity: 2.5 kg (6 lbs)
• Size: 70 mm (2-3/4″)
• easy to assemble
• practical
• stable
• Ram travel: 37 mm (1-29/64″)
• Minimum door gap: 2.8 mm (7/64″)
• white
• robust
• high brand quality from UMAXO®

The dimensions:

• Total length of the snap fastener: 70 mm (2-3/4″)
• Mounting plate width: 15 mm (19/32″)
• Case height: 15.3 mm (39/64″)

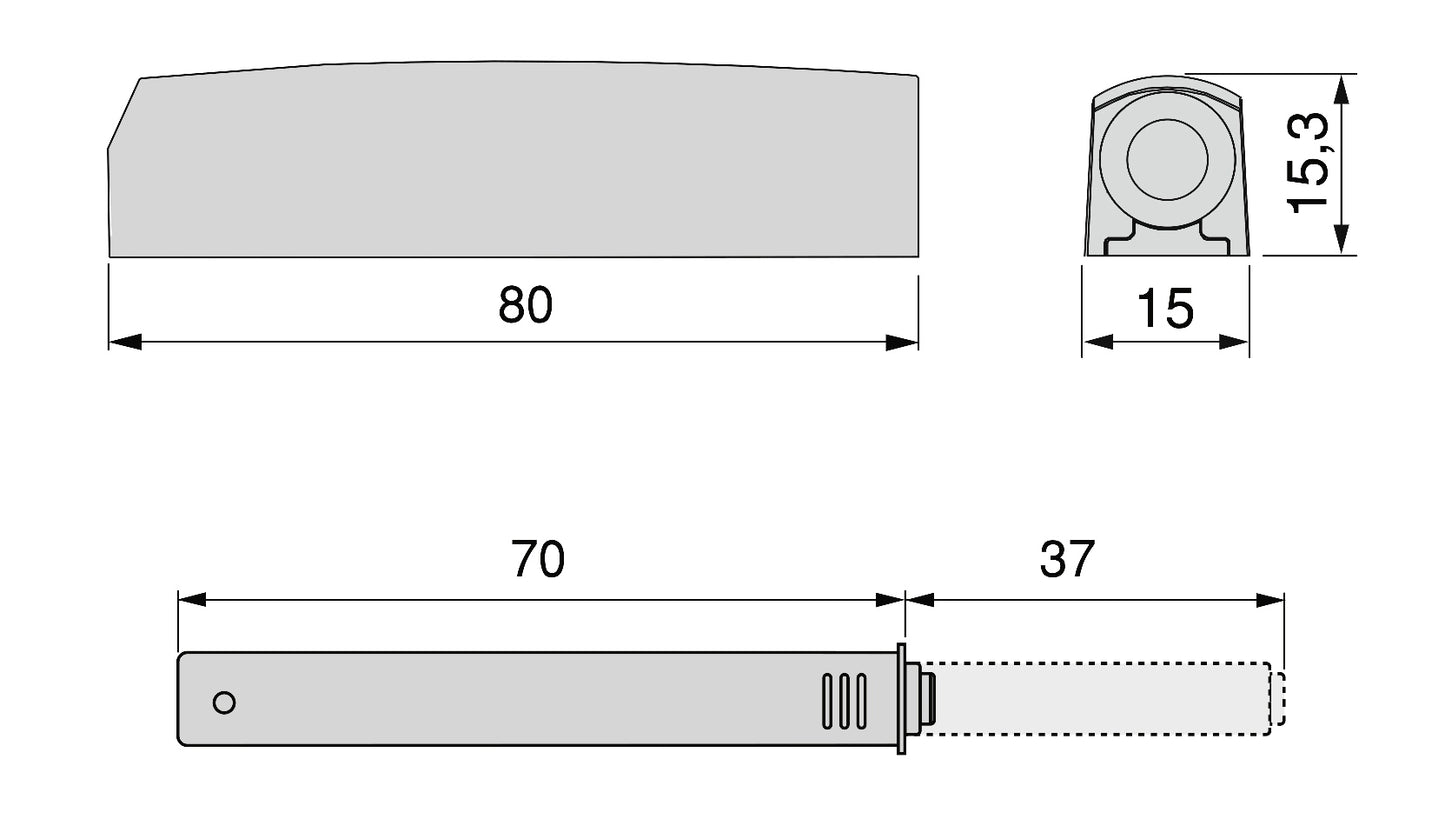

For further dimensions and details see technical drawing .

Included in delivery:

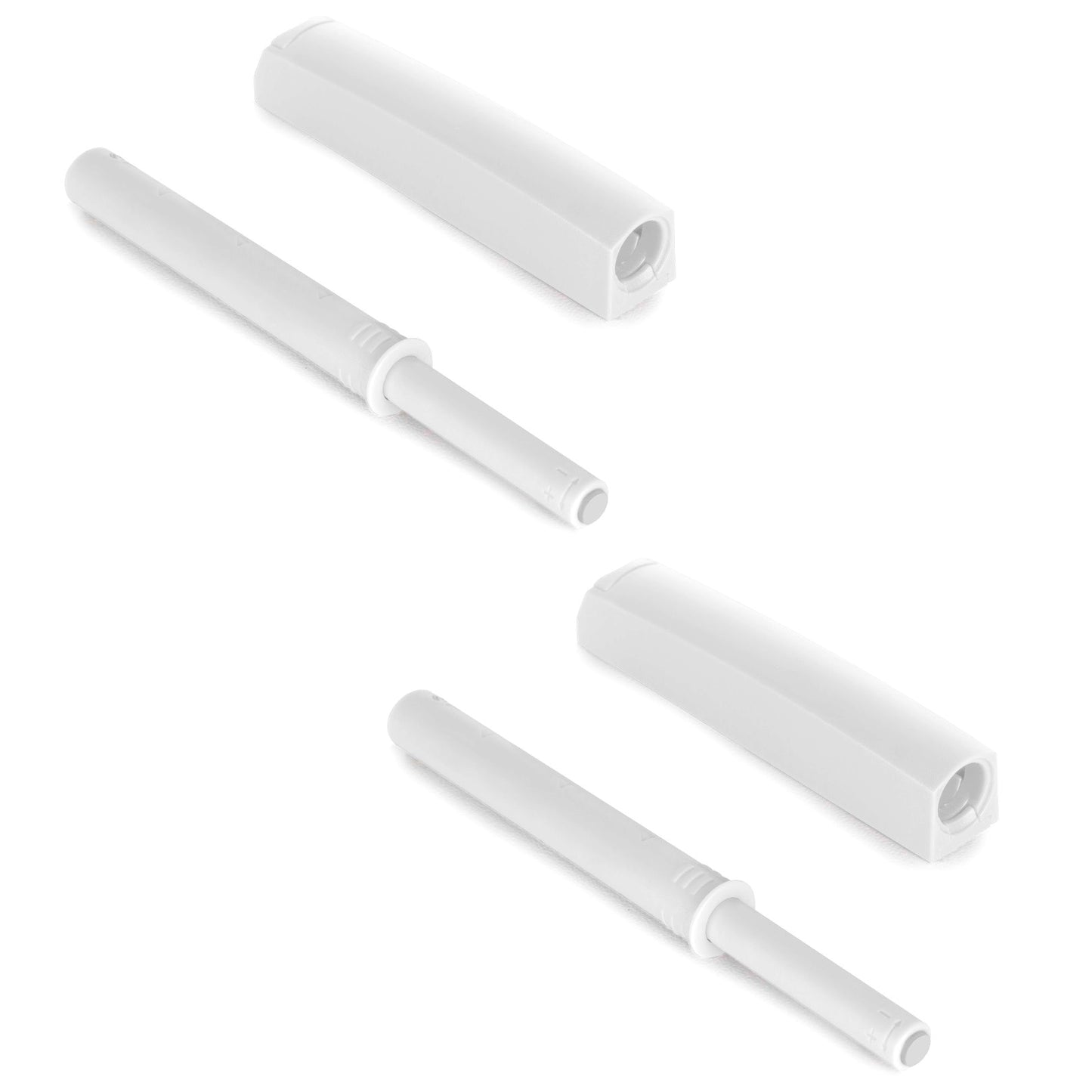

• Two push-button catches 1900215 made of robust plastic, white, design: non-magnetic
• Two pieces of housing

Watch product video:

Additional Information:

• Download assembly instructions .

Manufacturer reference number:

• Article number: 1900215
• EAN number: 8432393298818

Manufacturer: EMUCA
