2 elegant push-button catches, with mounting housing, surface: grey, design: non-magnetic, 1900221 for furniture doors, cupboard doors, flaps

Two practical push-button catches, with mounting housing, made of robust plastic (plastic), surface: grey, 1900221, design: non-magnetic

Application:

Sturdy push-to-open door opener for furniture doors, cupboard doors, flaps and much more.

For use with hinges with closing spring.

The Push-To-Open door opener 1900221 enables the convenient opening and closing of handleless furniture doors by pressing.

The pressure latch 1900221 has a long plunger travel of 37 mm (1-29/64″).

Thanks to its compact plastic housing, the push-button catch 1900221 can be discreetly screwed onto the body side.

The system is low-wear and is particularly suitable for kitchens and bathrooms, where frequent use is common.

The practical mounting housing of the pressure lock 1900221 allows for relaxed installation.

It is also possible to drill the door opener 1900221 directly into the side of the cabinet without having to use the mounting housing.

The high-quality snap fasteners 1900221 are ideal for, among other things:

• Kitchen fronts
• bathroom furniture
• Furniture doors
• Cabinet doors
• Succeed

Material:

• The snap fasteners 1900221 are made of robust plastic (plastic)
• Plastic is lightweight and allows easy assembly of components and furniture fittings without compromising stability
• It is corrosion-resistant and is therefore particularly suitable for humid environments such as swimming pools, bathrooms or kitchens
• In addition, the flexible formability of plastic allows for a wide variety of designs and unobtrusive integration into different furniture styles or devices and machines

Surface:

• Gray
• Grey offers a versatile and elegant base that combines well with other colours and materials, creating a calm, timeless atmosphere in both modern and classic spaces
• In addition, grey has the ability to highlight accents in a room without being dominant, making it ideal for creating harmonious and balanced interiors.

Assembly:

• The fastening is done with Pozidriv countersunk chipboard screws 3 x 16 mm, self-tapping (not included)
• The push button 1900221 has four mounting holes
• The distance between the first and last mounting hole is 52 mm (2-3/64″)
• The catch is screwed onto the side of the body

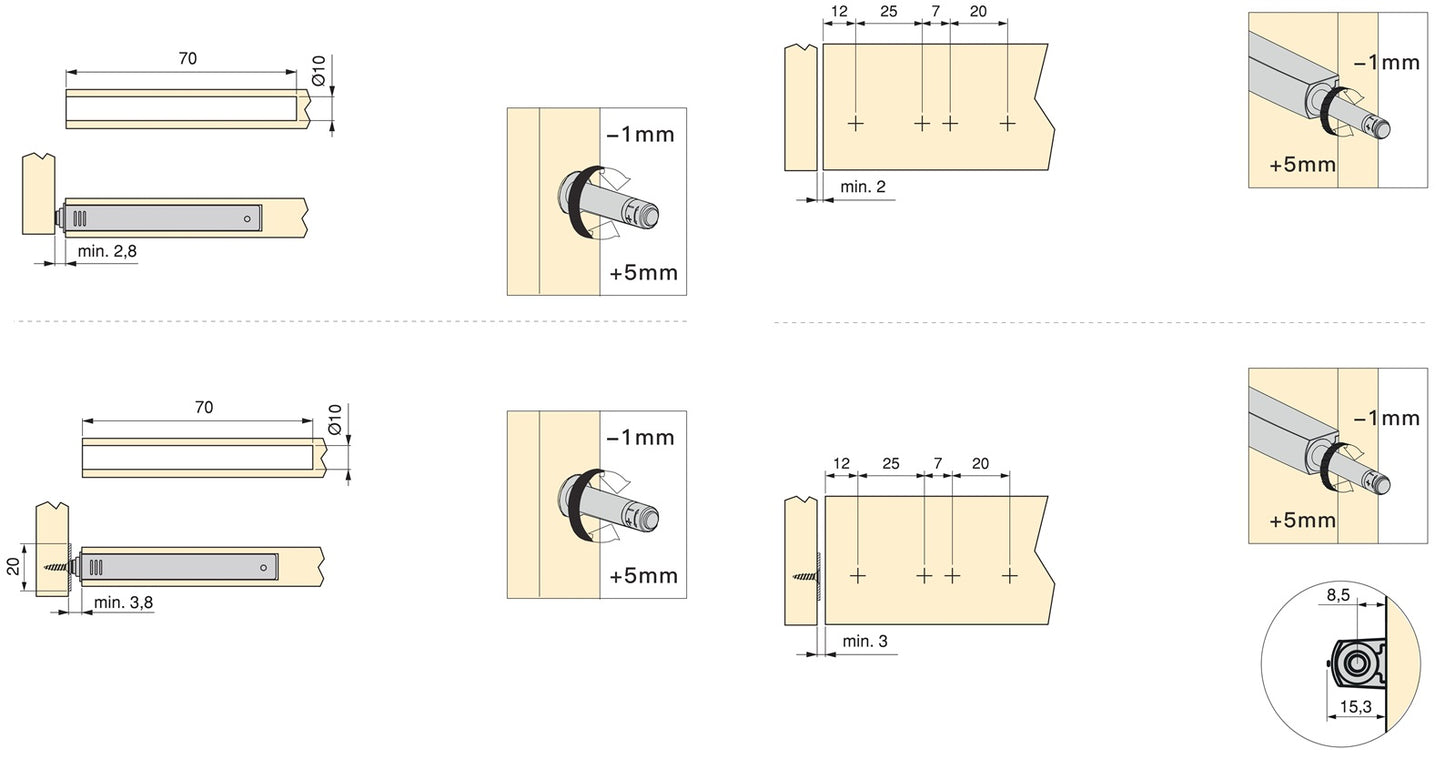

• The distance between the push-to-open door opener 1900221 and the door edge is 12 mm (15/32″) (for further details see assembly drawing )

Characteristics:

• Design: non-magnetic
• Weight: 26 g
• Load capacity: 2.5 kg (6 lbs)
• Size: 70 mm (2-3/4″)
• easy to assemble
• practical
• stable
• Ram travel: 37 mm (1-29/64″)
• Minimum door gap: 2.8 mm (7/64″)
• gray
• robust
• high brand quality from UMAXO®

The dimensions:

• Total length of the snap fastener: 70 mm (2-3/4″)
• Mounting plate width: 15 mm (19/32″)
• Case height: 15.3 mm (39/64″)

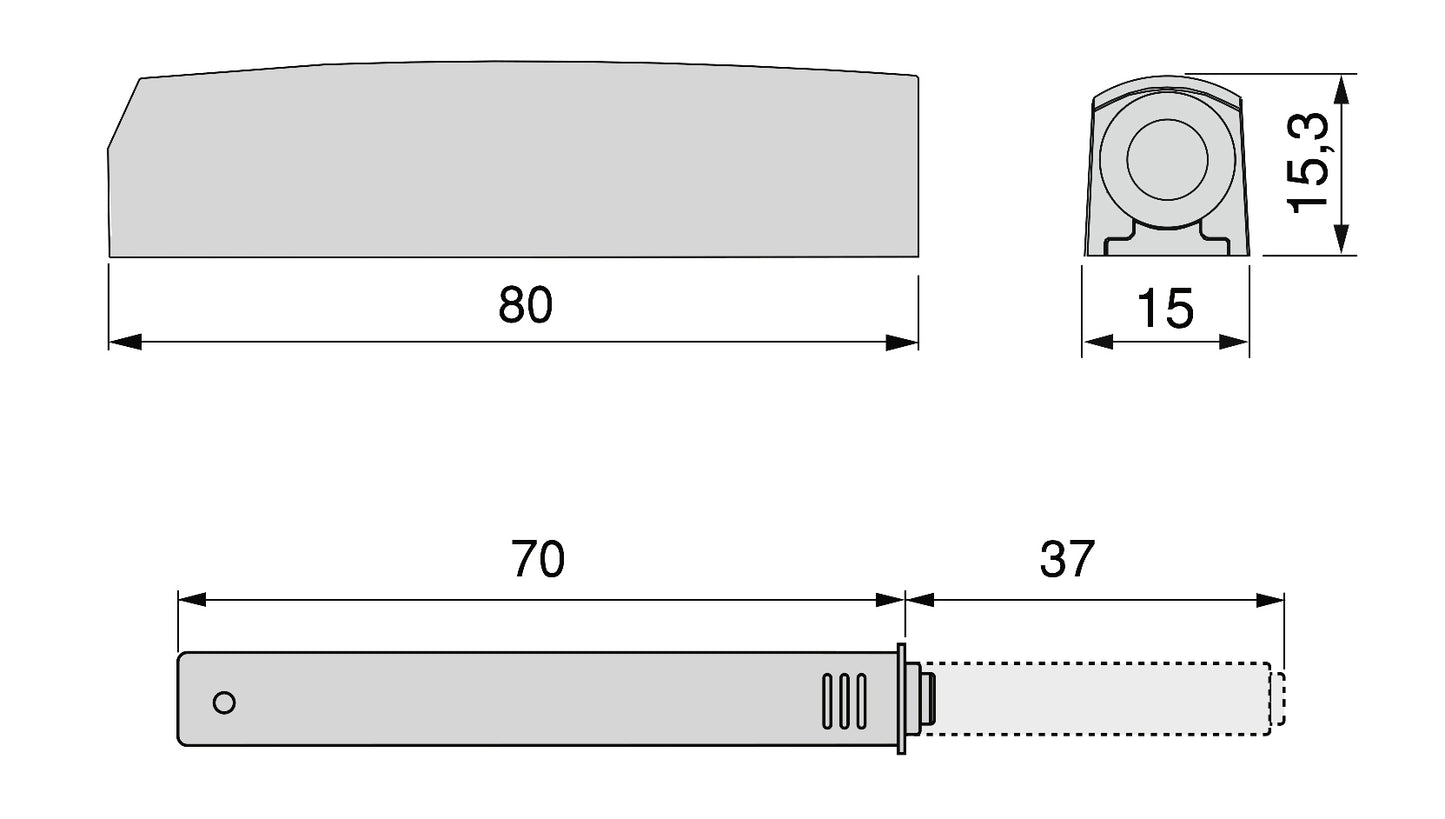

For further dimensions and details see technical drawing .

Included in delivery:

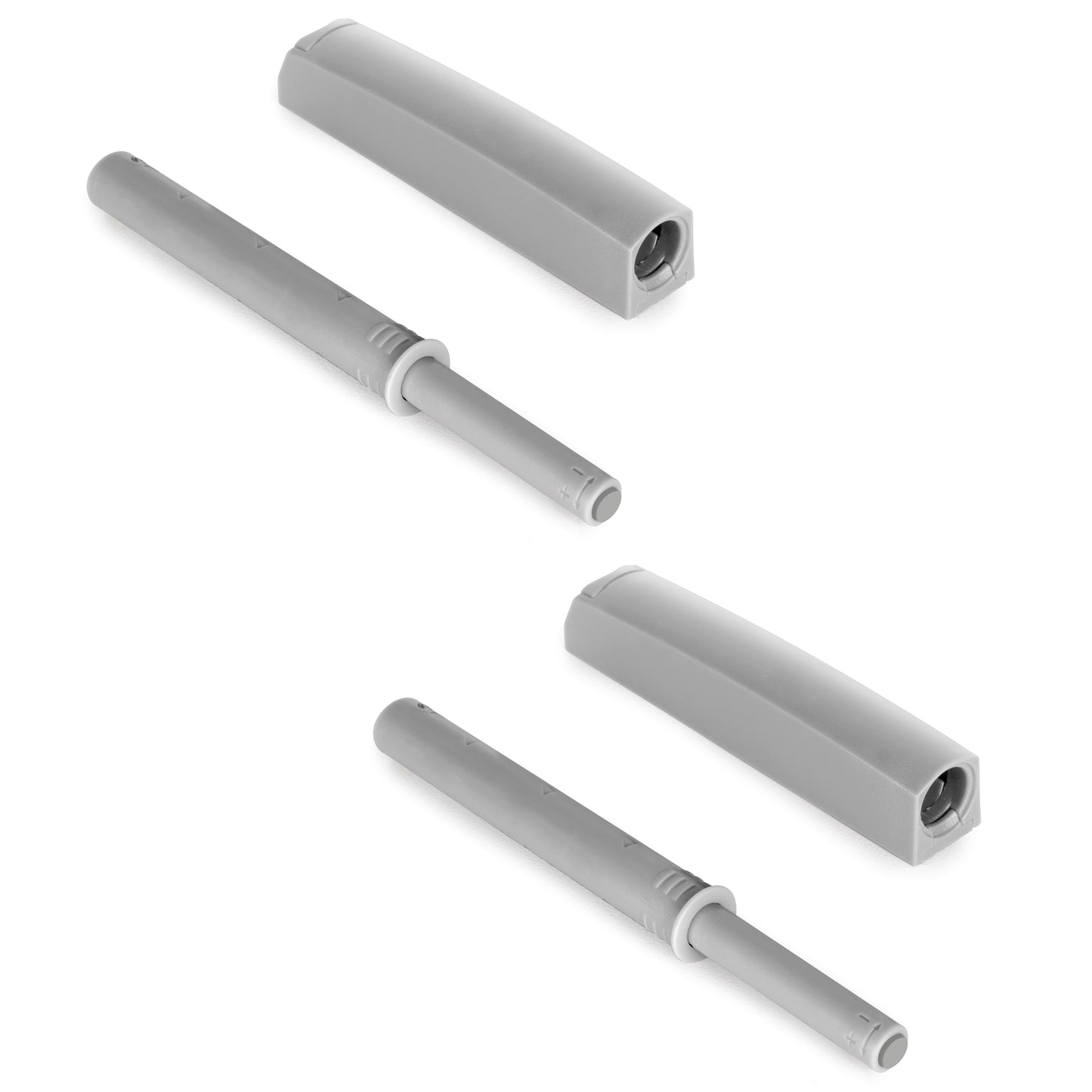

• Two push-button catches 1900221 made of robust plastic, grey, design: non-magnetic
• Two mounting housings

Watch product video:

Additional Information:

• Download assembly instructions .

Manufacturer reference number:

• Article number: 1900221
• EAN number: 8432393283487

Manufacturer: EMUCA
