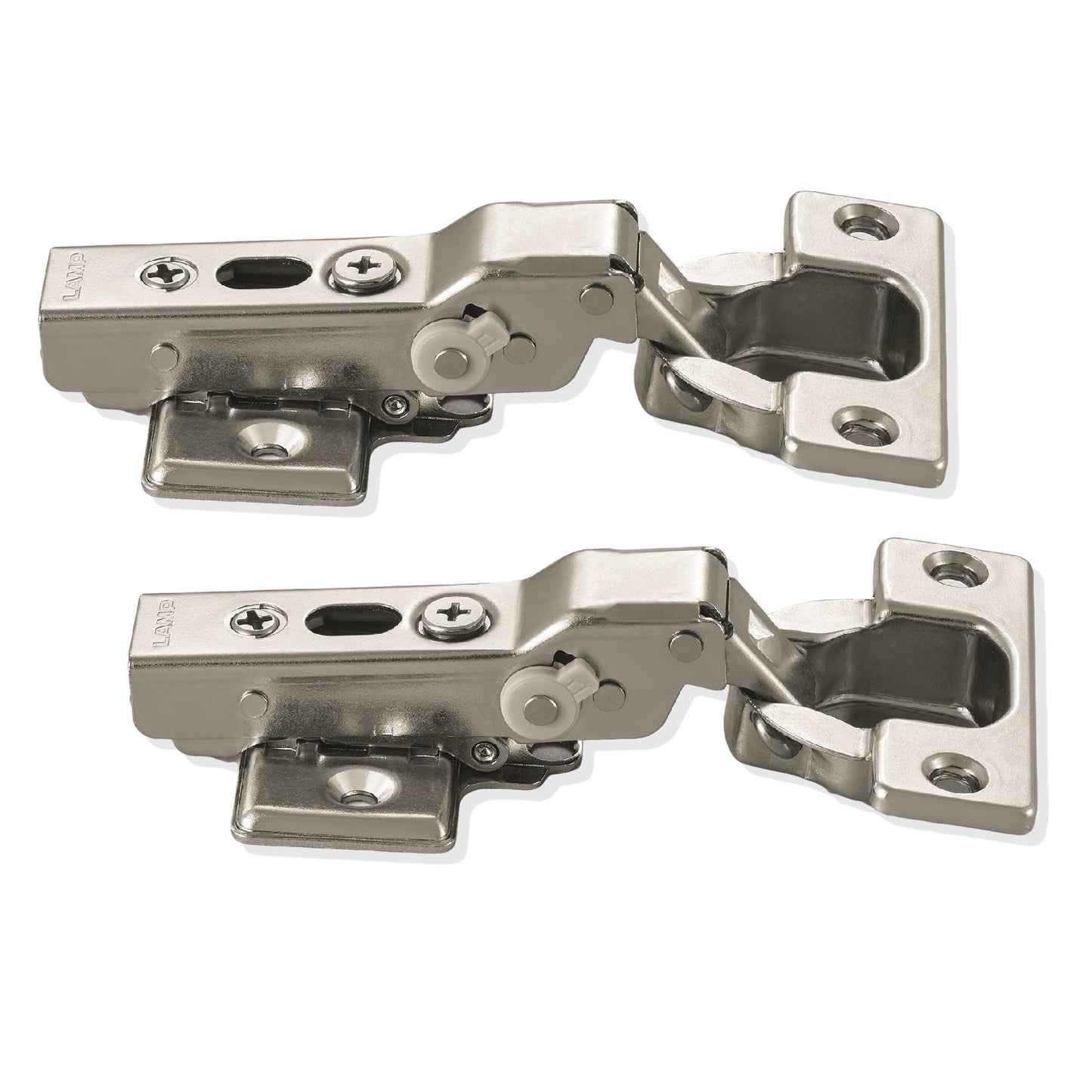

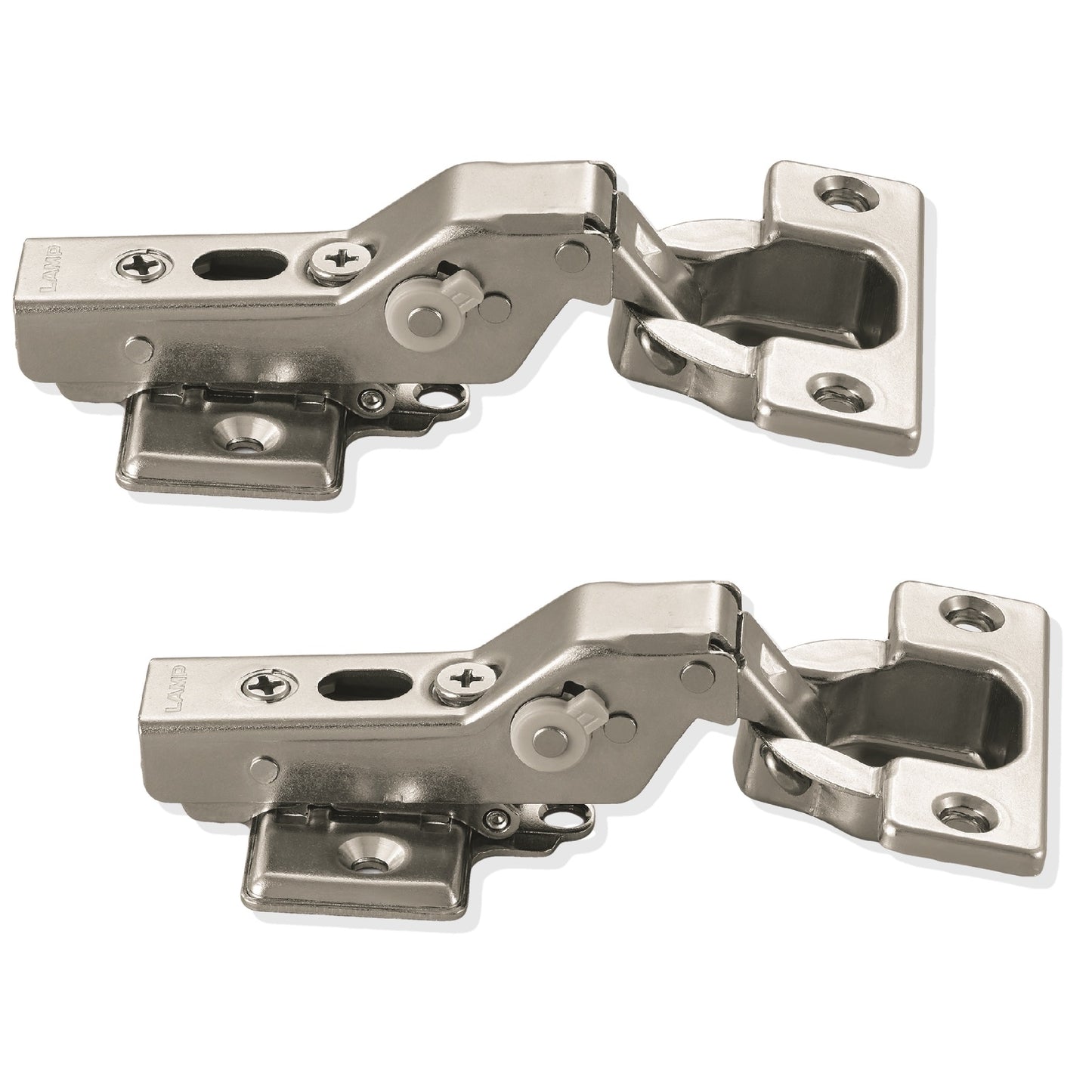

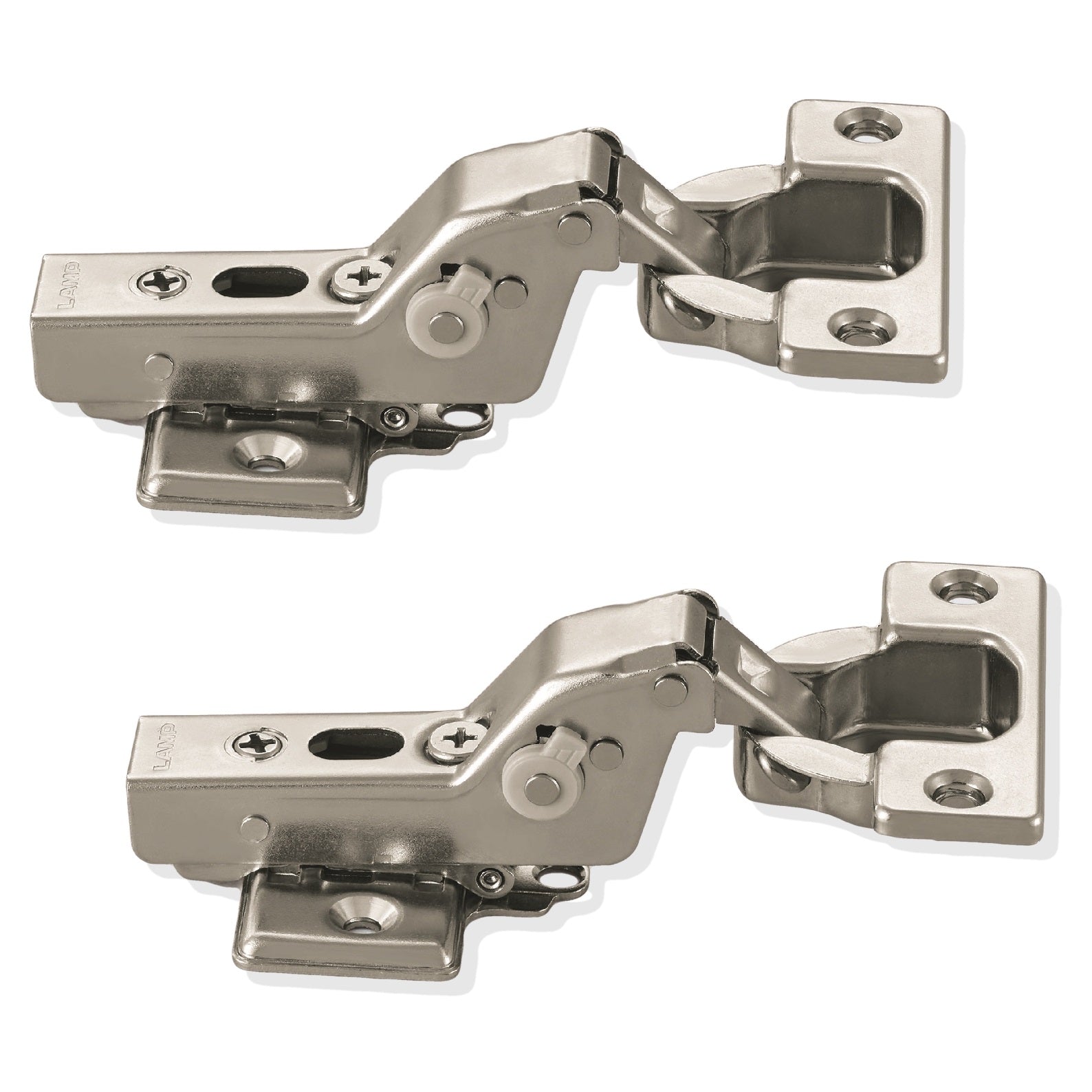

Set consisting of two dampened furniture hinges, with adjustable damper including mounting plates, from LAMP® / Japan

Characteristics:

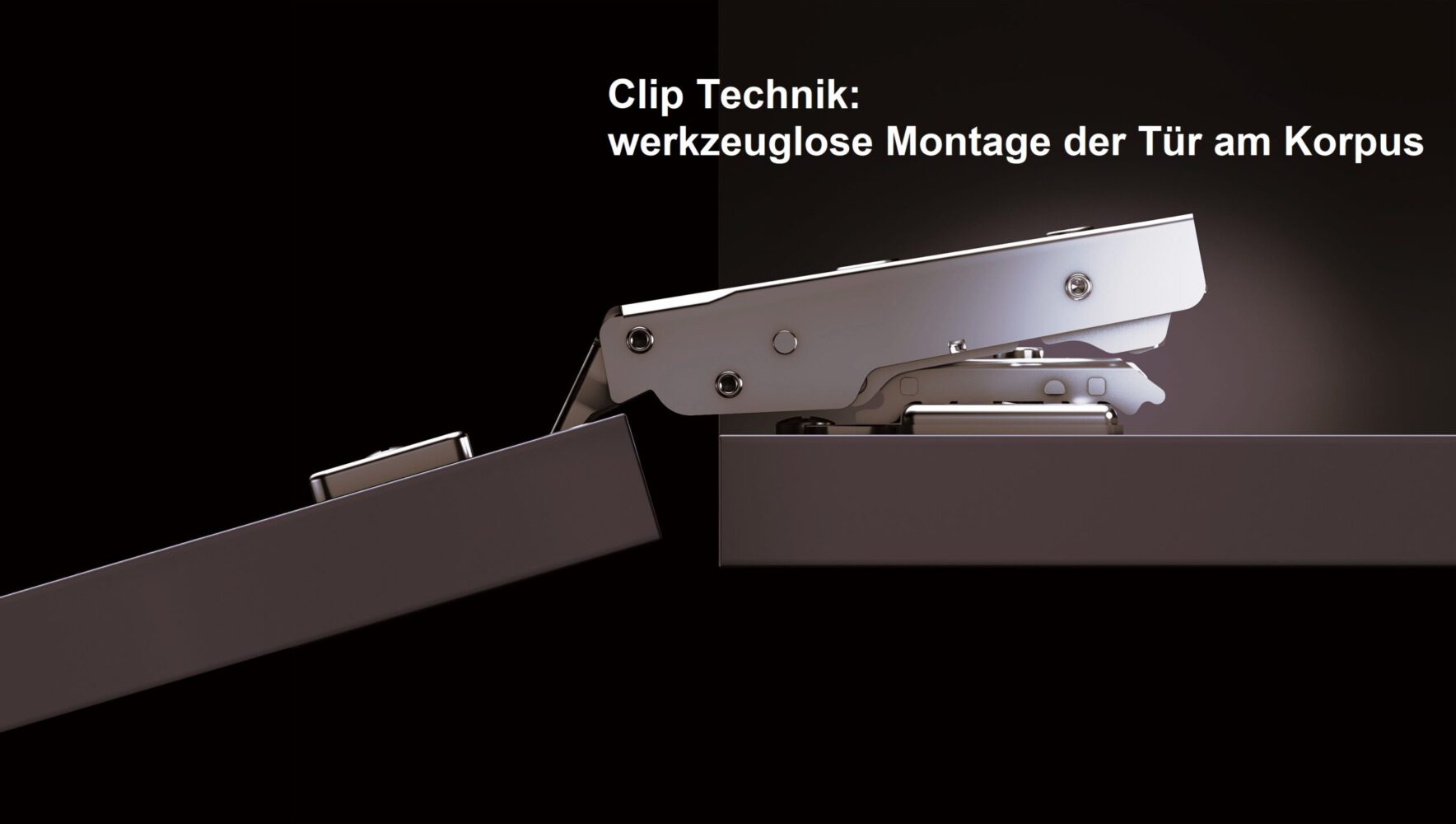

• Clip technology: tool-free installation of the door on the body
• 105° opening angle

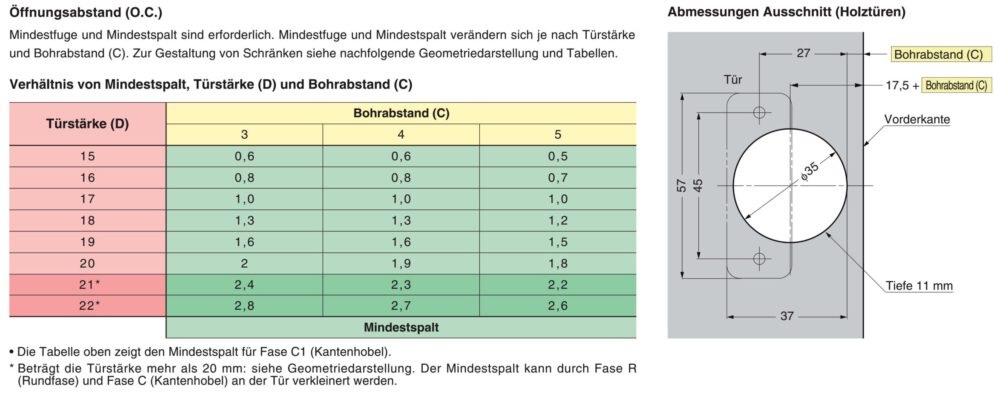

• Pot size ø35mm
• Drilling depth 11 mm
• Door thickness 15-20 mm

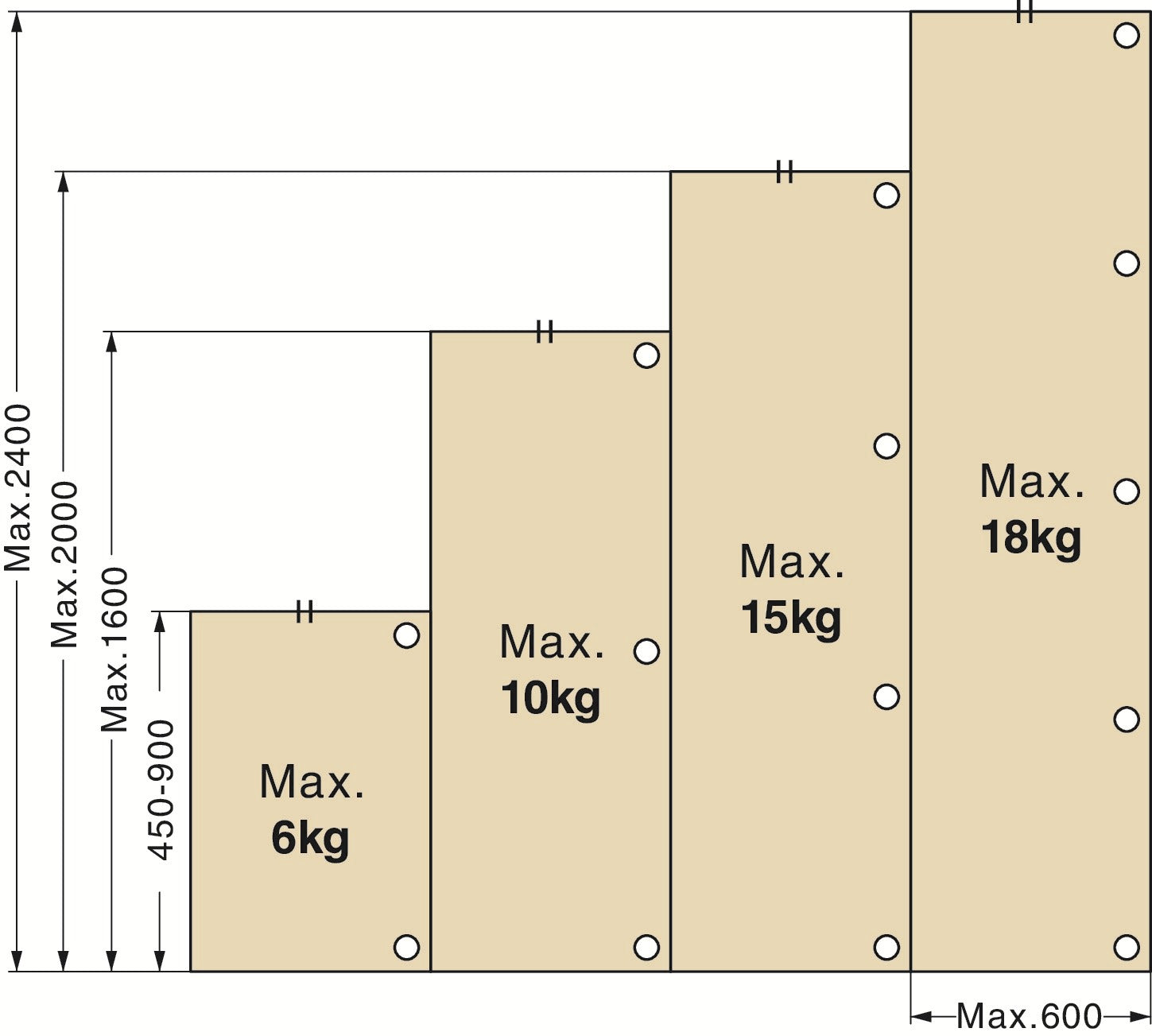

• The mounting plates also have a third fastening point for an optional third screw, so that even particularly heavy doors can be installed safely

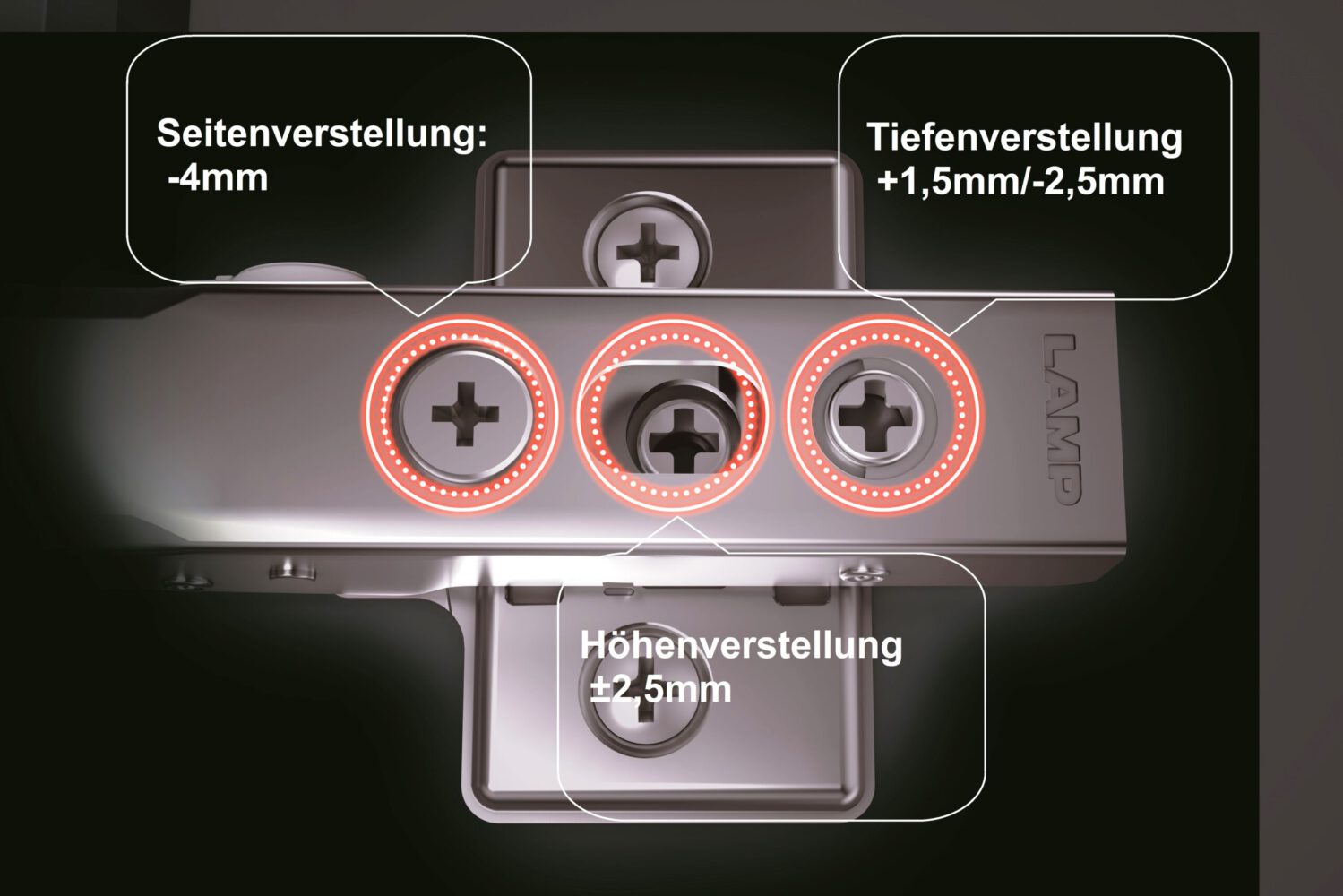

The hinge system offers 4 adjustment options:

• Support adjustment (side adjustment: -4 mm)
• Depth adjustment (+1.5 mm / -2.5 mm)
• Height adjustment (±2.5 mm)

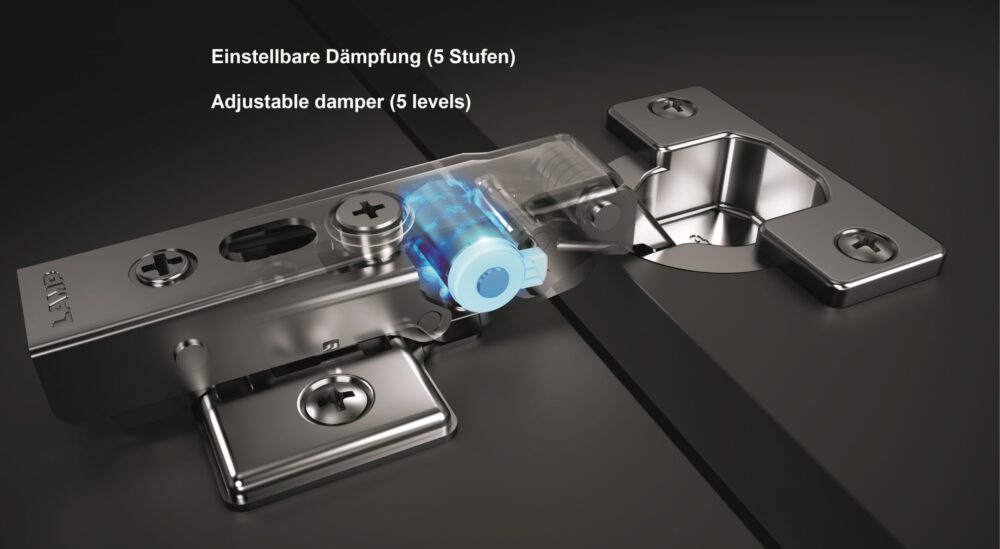

• adjustable damping integrated into the hinge arm (tool-free, 5 levels)

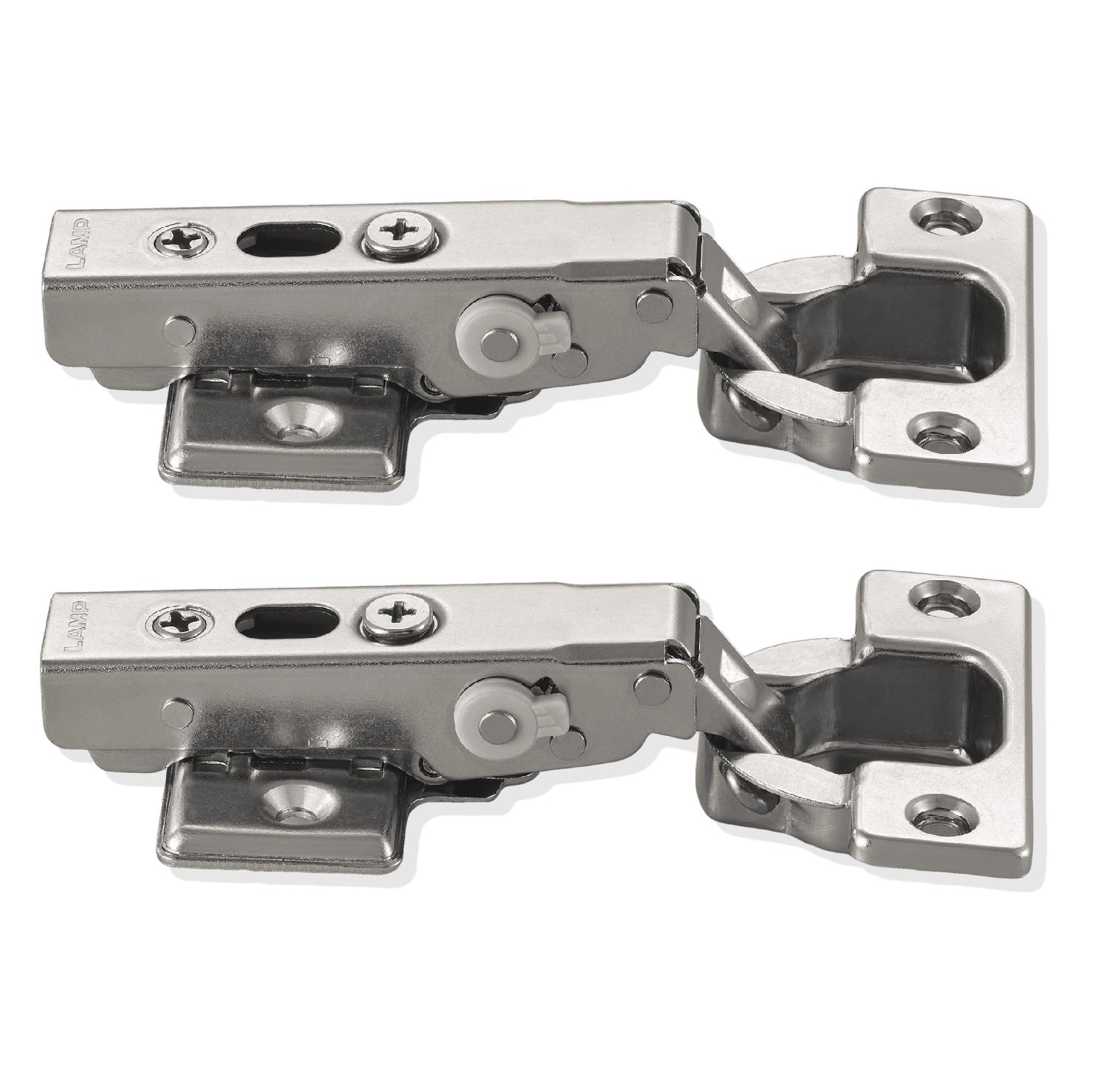

Included in delivery:

• 2 hinges (furniture hinges)

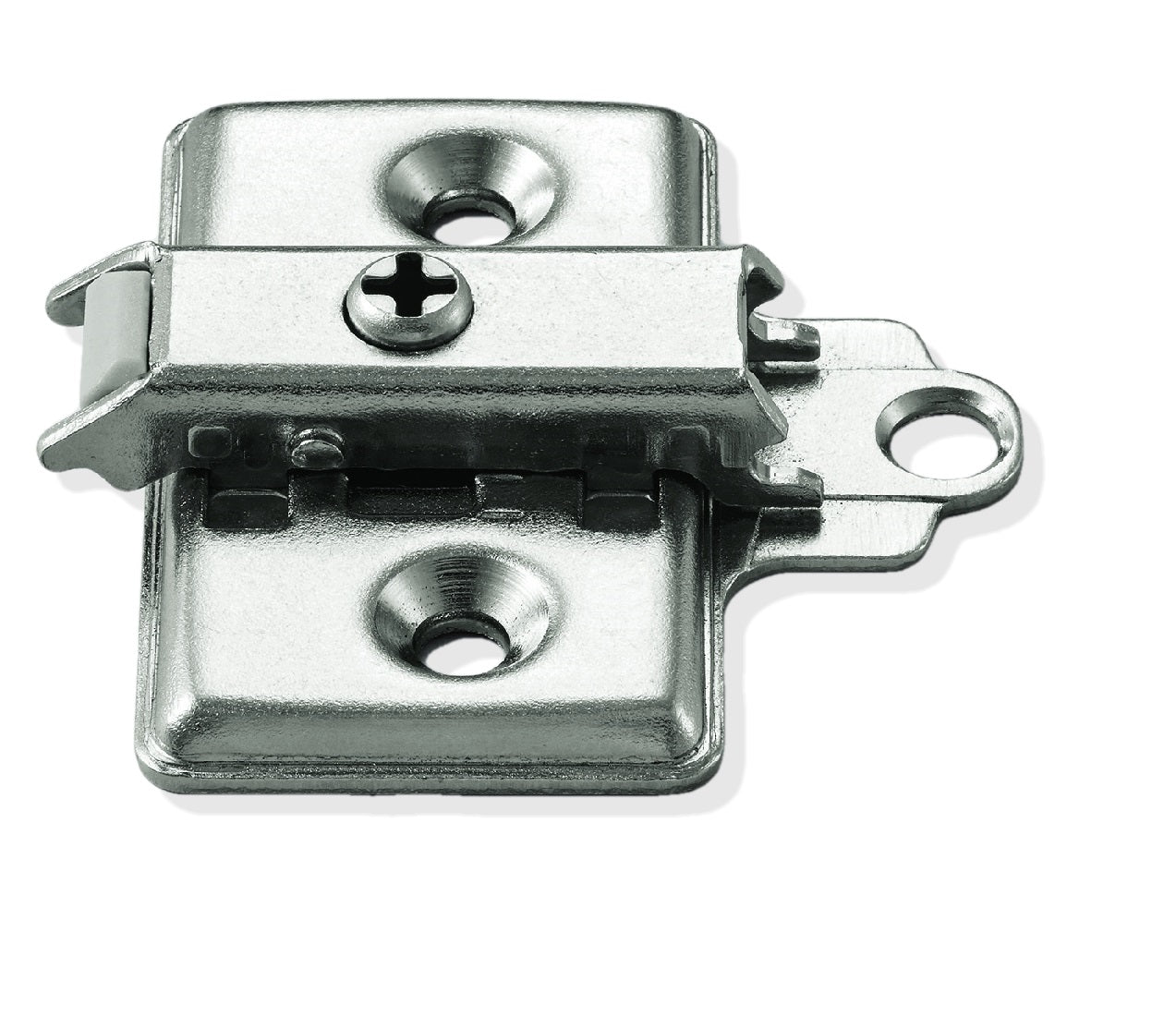

• 2 mounting plates (base plates)

These beautiful furniture hinges are perfect for kitchen furniture, home furniture, office furniture and cabinets of all kinds. Manufactured by LAMP® / SUGATSUNE, Japan. Successfully passes the 200,000 opening and closing test. Premium brand quality. Here: Download the catalog (including drawings) in PDF format! Watch product video: Special features of the Olympia furniture hinge: The Olympia hinge represents the pinnacle of soft-close mechanisms. The innovative rotary damper is not only extremely compact, resulting in a sleek overall design, but it's also adjustable to five different settings. This unique feature allows doors of different sizes to close at the same speed. The compact size of the damper allowed the 3D adjustment screws to be mounted on the top, keeping the mounting plate as small as possible. Another innovation is the mounting plate attachment. Unlike conventional cup hinges, which must be installed from front to back, Olympia can be installed by simply pushing from the top. This not only saves time during installation, but also reduces the hassle of installing three or more hinges. Each hinge can be easily snapped into place one after the other. To underline the quality and stability, Sugatsune has successfully tested the Olympia hinge in a 200,000 cycle test. Manufacturer: Sugatsune / LAMP® (Japan)
